Communication diagrams for CLC Servers using online licensing

The diagrams in this section represent communication between CLC software and other local resources for some common setups when the CLC Server is using online licensing.

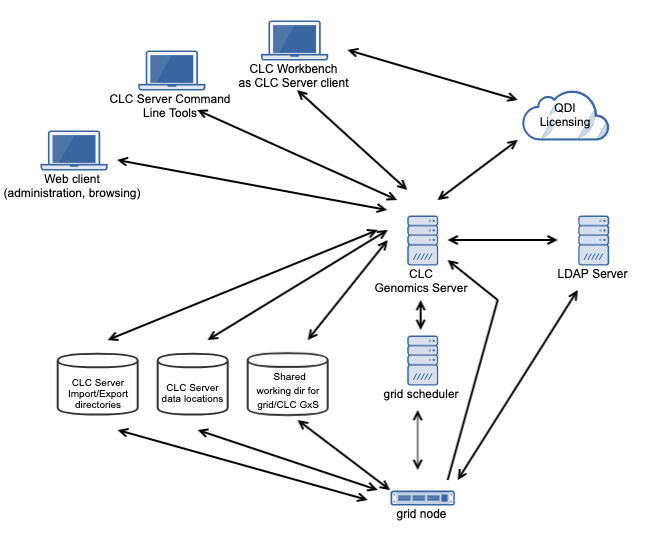

Representative CLC Server grid setup with LDAP authentication

Image communication-clc-server-gridnodes-ldap-uma-online
Figure 23.1: A representative CLC Server setup, where job execution is carried out on grid nodes, LDAP authentication is being used and the CLC Server is using online licensing.

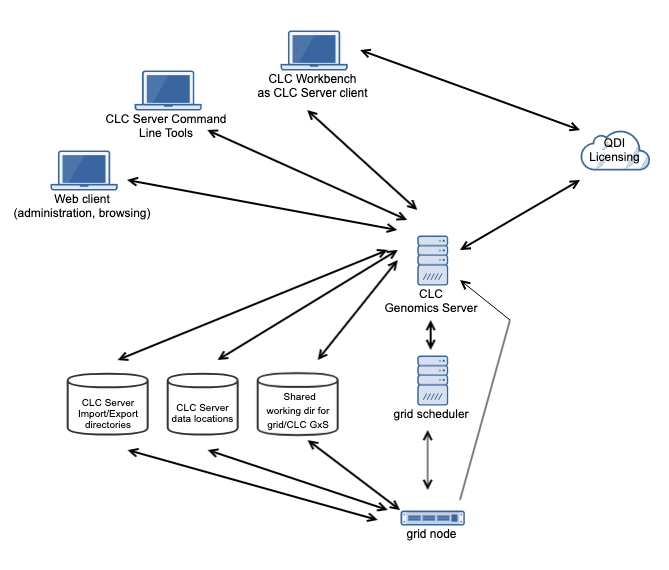

Representative CLC Server grid setup using built-in authentication

Image communication-clc-server-gridnodes-builtin-auth-uma-online
Figure 23.2: A representative CLC Server setup, where job execution is carried out on grid nodes, the built-in authentication mechanism is being used, and the CLC Server is using online licensing.

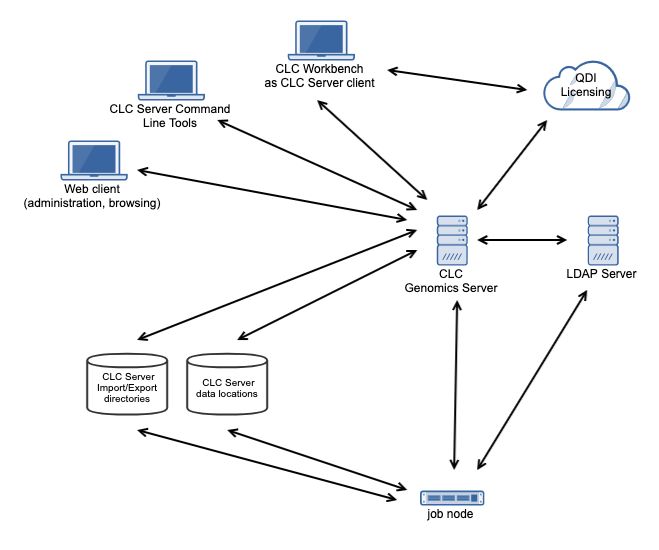

Representative CLC Server job node setup with LDAP authentication

Image communication-clc-server-jobnodes-and-ldap-uma-online
Figure 23.3: A representative CLC Server setup, where job execution is carried out on job nodes, LDAP authentication is being used and the CLC Server is using online licensing.

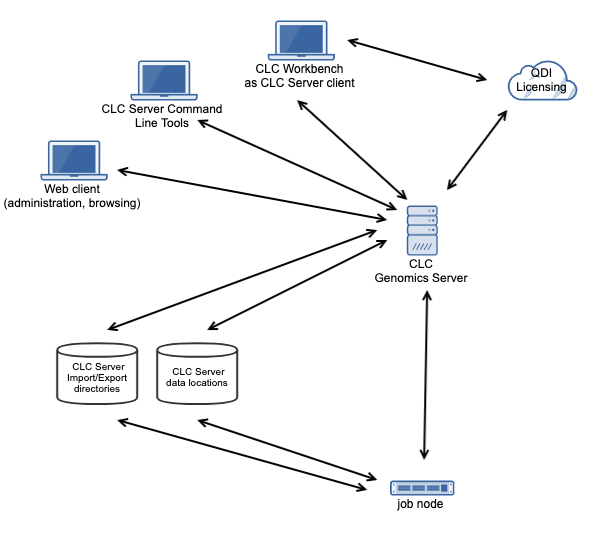

Representative CLC Server job node setup using built-in authentication

Image communication-clc-server-jobnodes-builtinauth-uma-online
Figure 23.4: A representative CLC Server setup, where job execution is carried out on job nodes, the built-in authentication mechanism is being used, and the CLC Server is using online licensing.
