Communication diagrams for CLC Servers using downloaded license files
The diagrams in this section represent communication between CLC software and other local resources for some common setups when the CLC Server is using downloaded license files.

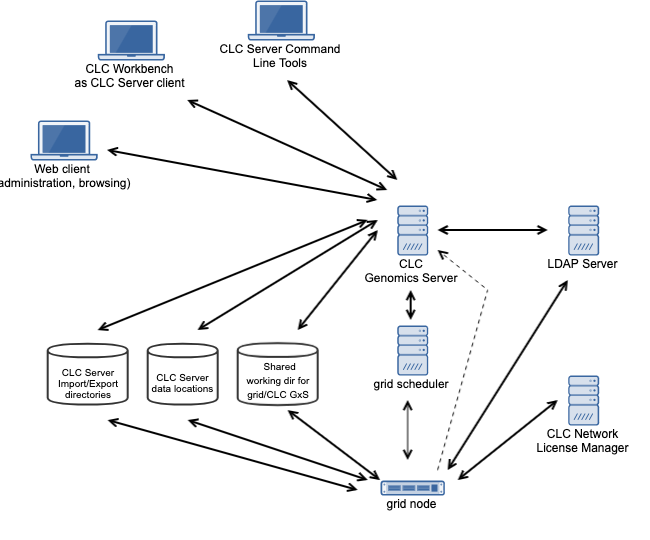

Representative CLC Server grid setup with LDAP authentication
Figure 23.5: A representative CLC Server setup, where job execution is carried out on grid nodes, LDAP authentication is being used and the CLC Server is using downloaded license files. The dotted line between grid node and the master CLC Server represents the communication that triggers an index update when a job has created files in a CLC File System Location.

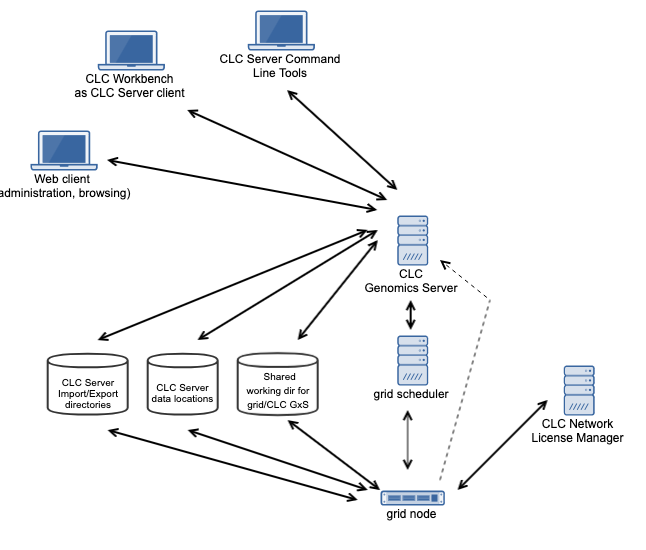

Representative CLC Server grid setup using built-in authentication
Figure 23.6: A representative CLC Server setup, where job execution is carried out on grid nodes, the built-in authentication mechanism is being used, and the CLC Server is using downloaded license files. The dotted line between grid node and the master CLC Server represents the communication that triggers an index update when a job has created files in a CLC File System Location.

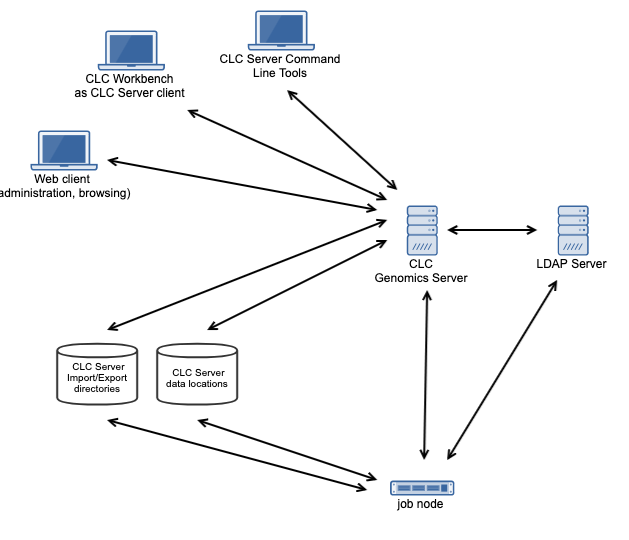

Representative CLC Server job node setup with LDAP authentication
Figure 23.7: A representative CLC Server setup, where job execution is carried out on job nodes, LDAP authentication is being used and the CLC Server is using downloaded license files.

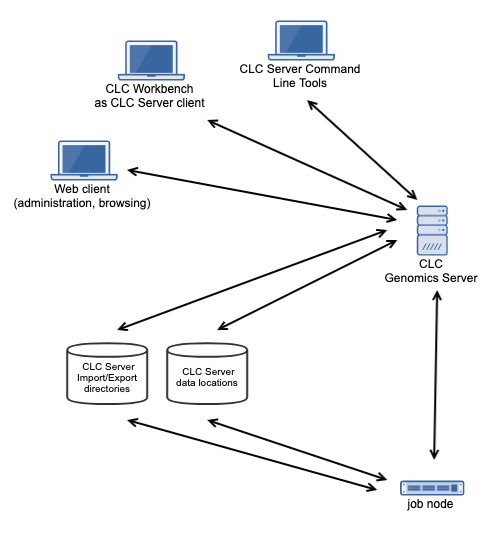

Representative CLC Server job node setup using built-in authentication
Figure 23.8: A representative CLC Server setup, where job execution is carried out on job nodes, the built-in authentication mechanism is being used, and the CLC Server is using downloaded license files.
