Run the Identify and Annotate Variants (TAS) workflow

To run the Identify and Annotate Variants (TAS) workflow, go to:

        Workflows | Template Workflows | Biomedical Workflows (Image biomedical_twf_folder_open_16_n_p) | Targeted Amplicon Sequencing (Image targeted_sequencing_closed_16_n_p) | Somatic Cancer (Image somatic_folder_closed_16_n_p) | Identify and annotate Variants (TAS) (Image identify_annotate_var_tas_16_h_p)

  1. Double-click on the workflow name to start the analysis. If you are connected to a server, you will first be asked where you would like to run the analysis.

  2. First select the sequencing reads from the sample that should be analyzed (figure 20.34).

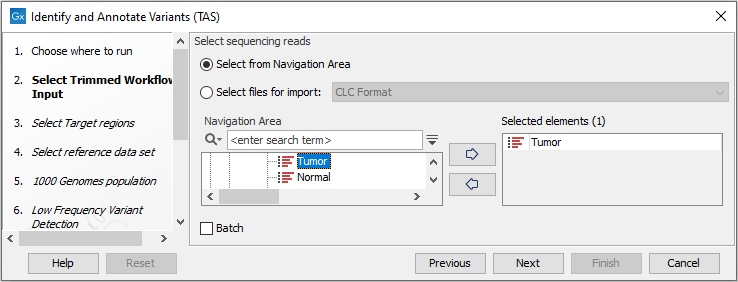

    Image annotate_and_filter_variants_wizardstep1_tas
    Figure 20.34: Select all sequencing reads from the sample to be analyzed.

    If several samples should be analyzed, the tool has to be run in batch mode. This is done by checking "Batch" and selecting the folder that holds the data you wish to analyze.

  3. In the Target regions dialog (figure 20.35), you can specify the target regions track. Variants will only be called in the target regions.

    Image identify_and_annotate_variants_step6_tas
    Figure 20.35: In this wizard step you can specify the target regions track. Variants will not be called outside these regions.

  4. In the next dialog, you have to select which reference data set should be used in the analysis (figure 20.36).

    Image identify_annotate_variants_tas
    Figure 20.36: Choose the relevant reference Data Set to identify and annotate.

  5. In the next wizard step (figure 20.37) you can select the population from the 1000 Genomes project that you would like to use for annotation.

    Image identify_and_annotate_variants_step3_tas
    Figure 20.37: Select the population from the 1000 Genomes project that you would like to use for annotation.

  6. In the next dialog (figure 20.38), you have to specify the parameters for the variant detection.

    Image identify_and_annotate_variants_step5_tas
    Figure 20.38: Specify the parameters for variant calling.

    For a description of the different parameters that can be adjusted, see http://resources.qiagenbioinformatics.com/manuals/clcgenomicsworkbench/current/index.php?manual=Low_Frequency_Variant_Detection.html. If you click on "Locked Settings", you will be able to see all parameters used for variant detection in the template workflow.

  7. In the QC for Target Sequencing step (figure 20.39) you can specify the minimum read coverage that should be present in the targeted regions.

    Image identify_and_annotate_variants_step4_tas
    Figure 20.39: Set the parameters for the QC for targeted regions.

  8. Finally, select a population from the HapMap database (figure 20.40). This will add information from the Hapmap database to your variants.

    Image identify_and_annotate_variants_step8_tas
    Figure 20.40: Select a population from the HapMap database to add information from the Hapmap database to your variants.

  9. In the last wizard step you can check the selected settings by clicking on the button labeled Preview All Parameters. In the Preview All Parameters wizard you can only check the settings, and if you wish to make changes you have to use the Previous button from the wizard to edit parameters in the relevant windows.

  10. Choose to Save your results and click Finish.
